● Meet GB/T 19056-2021
● Maximum 8-channel video input
● 2.0T computing power, support DSM, BSD, ADAS, 360 algorithm expansion
● H.265/H.264 coding
● Built-in disaster recovery storage
● Built-in encryption chip to protect data information security
● Support Bluetooth, wireless docking law enforcement instruments for more convenient driving data transmission
● Expandable WiFi
● Single spindle size design suitable for standardised installation
● Including RS232, RS485, USB, CAN bus and other interfaces

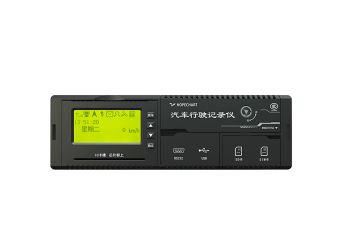

Product Model | HQA-802 |
MCU | ARM Cortex-M4 Dual-core processor |
Communication Module | 4G, ARM Cortex-A7 architecture, operating at 1.3GHz |
VPU | Support up to 8-way AHD input and storage (support 1080P and 720P resolution) Support 1-way CVBS output compatible with AHD Reserve support for ADAS, DSM, face recognition, BSD, 360 algorithms |
Disaster Recovery Storage | 32GB built-in |
Data Storage | Memory chip capacity 8GB, support PIN TO PIN replacement of different capacity EMMC |
BT | Support Bluetooth 4.1 and above Support 1Mbps and above wireless transmission rate support SPP and FTP protocol communication |
WIFI | Optional, expandable, support WiFi wireless data transmission in 2.4G band |
4G | FDD-LTE/TDD-LTE/TD-SCDMA/UMTS/EDGE/ GSM/EVDO/CDMA |
Positioning | GPS/BD dual-mode positioning |
CAN | CAN2.0B*3 Support SAE J1939/ISO 11898/UDS ISO14229 Support baud rate 250K-1Mbps |
USB | 1 x Front USB |
RS232 | 1way |
RS485 | 1way |
AD | 2way |
SD card | 1way |
Driver Card | Contact-based driver card |
Video Input | 8way，1080p(backwards compatible) |
Video Output | 1way，AHD/CVBS optional |
Video Storage | Support 1way SD card storage |
Video Recording and Playback | Support 8-channel 1080P with editingthe same solution, H.264\H.265 Support with audio recording Support video playback |
Audio Input | 3way |
Audio Output | 1way |
Switching Quantity | 10way |
Working Temperature | -30～+70℃ |
